Screening Thermography

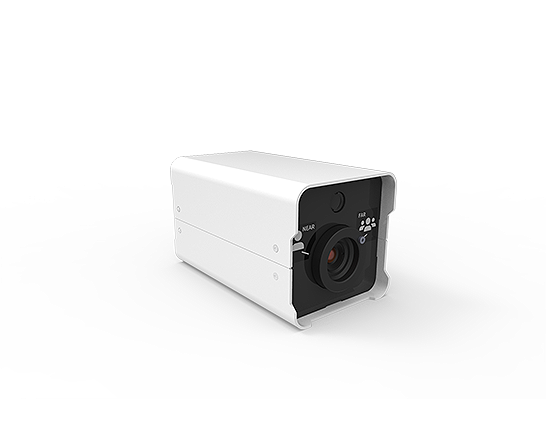

GIRM-SST-30

High-tier screening thermography (30Hz)

Through special algorithm which ensures an high-accuracy detection of the core temperature (36.5℃) (97.7℉), GIRM-SST-30(30Hz) can operate without any blackbody. It just needs some warm-up time.
The temperature accuracy without blackbody is 0.3℃ (0.54℉).
Optional miniature BB configuration is available. With BB, the temperature accuracy is 0.2℃ (0.36℉).

Specifications

Measurement range: 0.0℃~50.0℃ (32℉~122℉)
Thermal resolution: ≤0.05℃ (≤0.09℉) (≤50mK)
Angle of view: 49°(H) x 36°(V) (selectable)
Infrared image resolution: 384x288 pixels
Visible image resolution: 1,280x720 pixels
Accuracy: <0.3℃ (<0.54℉) (without BB)
Stability: <0.1℃ (<0.18℉)
Alarm response: <0.1s
Frame rate: 30Hz

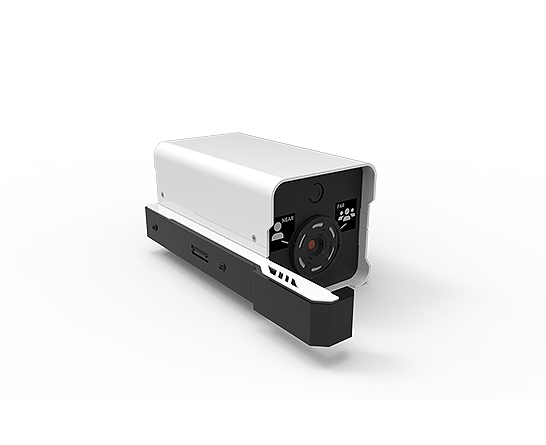

GIRM-SST-9-GBB

High-tier screening thermography (9Hz, BB equipped)

GIRM-SST-9-GBB product is equipped with world's first miniature BB.
It should be operated with BB and the temperature accuracy with BB is 0.2℃ (0.36℉).

Specifications

Measurement range: 0.0℃~50.0℃ (32℉~122℉)
Thermal resolution: ≤0.05℃ (≤0.09℉) (≤50mK)
Angle of view: 49°(H) x 36°(V) (selectable)
Infrared image resolution: 384x288 pixels
Visible image resolution: 1,280x720 pixels
Accuracy: <0.2℃ (<0.36℉) (with BB)
Stability: <0.1℃ (<0.18℉)
Alarm response: <0.1s
Frame rate: 9Hz

Differences of the GIRM-SST-30 and the GIRM-SST-9-GBB product

	GIRM-SST-30	GIRM-SST-9-GBB
Frame Rate	30Hz	9Hz
Permission of export for strategic goods	Required	N/A
BB(Blackbody)	Optional	Necessary
Warm-up time	10~30min. (w/o BB)	X (can operate within 10 sec.)
Warm-up time	X (with BB) (can operate within 10 sec.)	X (can operate within 10 sec.)
Temperature Accuracy	<0.3℃(w/o BB) <0.2℃(w/o BB)	<0.2℃(with BB)
USB cables to connect the laptop	Only one cable (w/o BB)	Two cables (one for camera and one for BB)
USB cables to connect the laptop	Two cables (with BB) (one for camera and one for BB)	Two cables (one for camera and one for BB)

Features of GIRM-SST- Series

Compliant with the international standards for screening thermography(ISO IEC 80601-2-59)
Certified as medical grade by the CFDA
World’s Best Performance of temperature accuracy, temperature stability, long distance measurement, and max. 48 detection areas
Developed in 2020 for COVID-19 (GIRM-SST-30 : in January 2020, GIRM-SST-9-GBB : in May, 2020)
Developed entirely with domestic technology of South Korea
Special algorithm ensures an high-accuracy detection of the core temperature (36.5 ℃) (97.7℉).

Operation video of Screening Thermography

Superiorities

	GIRM-SST-9-GBB	Other Thermal Body Temperature Solutions	Industrial Thermal Cameras	Tablet Type Solutions
Product Image
Temperature Accuracy	± 0.1℃	±0.3 ~ ±0.5℃ (with the external blackbody)	±2 ~ ±5℃	±0.3 ~ ±0.5℃
Measurement Distance	1 ~ 16m	1 ~ 5m	1 ~ 3m	0.5 ~ 1m
Simultaneous Detection Number	16 points of moving people, 48 points of standing people	3~10 people (Only front face)	One max. temperature point	One people
Blackbody / warm-up time	Internal / 5 ~ 15 sec.	External installation / 30 min.	X or External installation / 30 min.	✕
Detection of moving people	○ Front face, side face, back face, skins	△ Only front face	△ Only one point	✕ Should be in designated area
