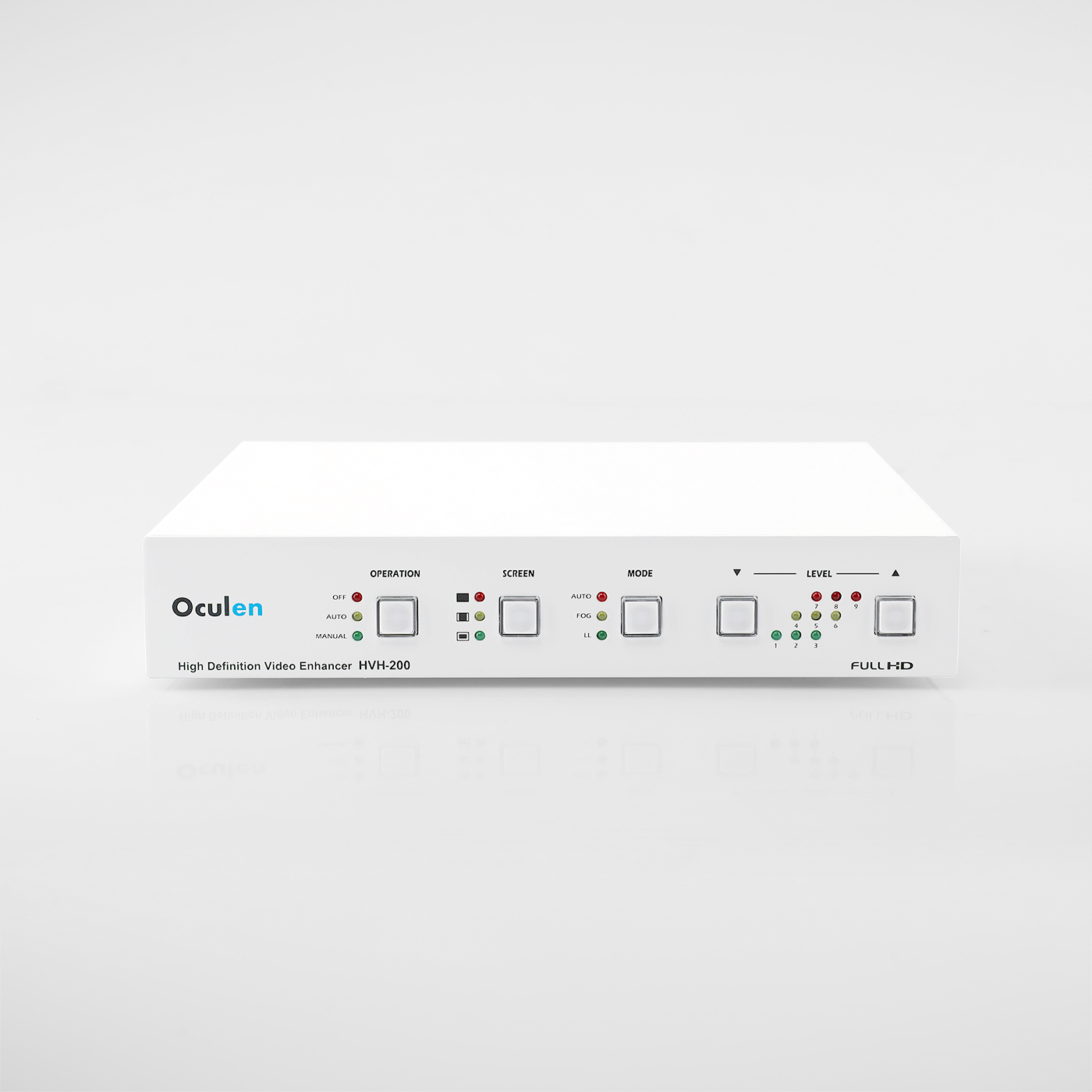

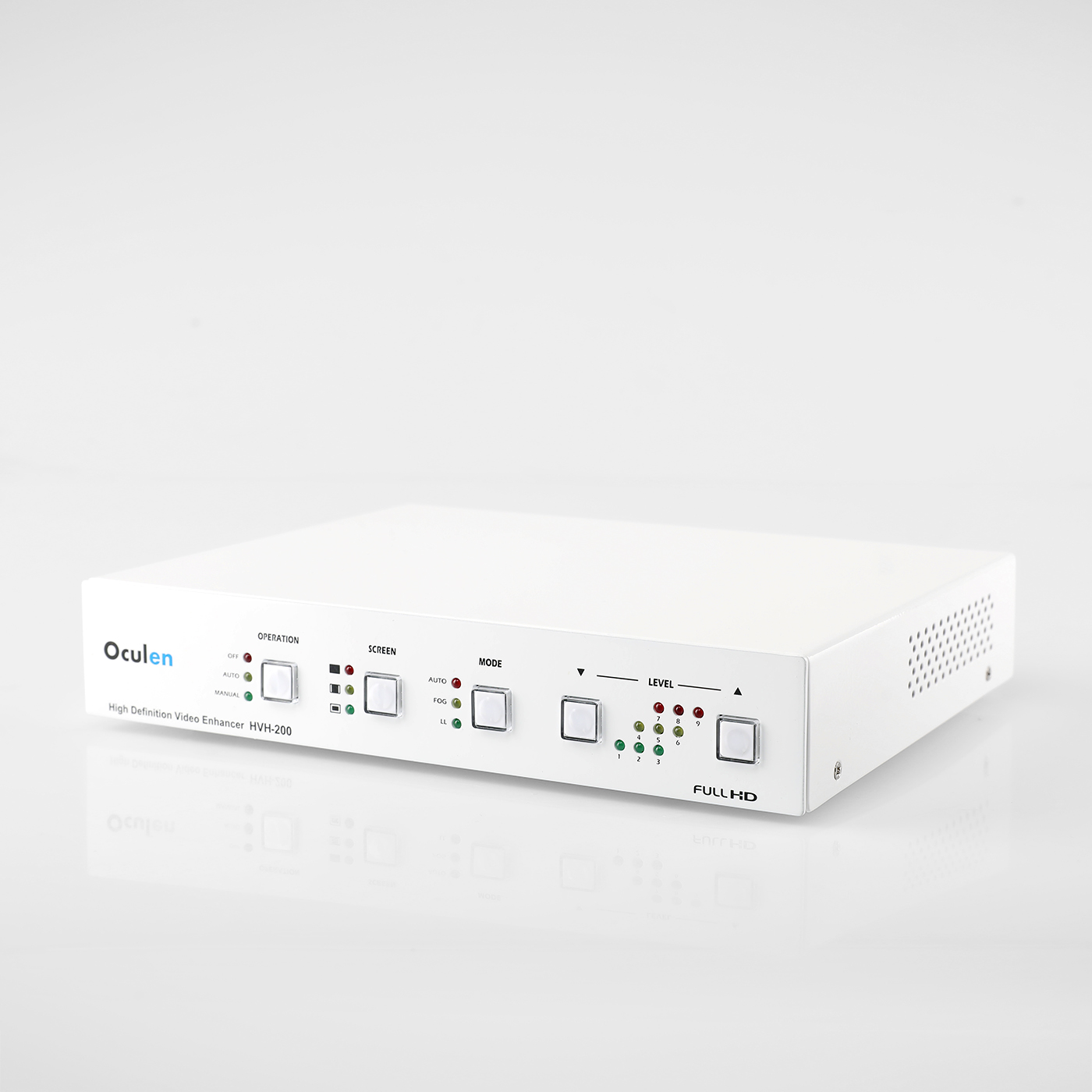

Full HD HVH-200 Video Enhancer
Full HD HVH-200 Video Enhancer
Features
-
Simple connection and superior compatibility through HDMI interface
-
Supports multi-channel image enhancement when installed after the NVR in the control room
-
Provides significant energy and cost savings compared to 1:1 camera connections
-
Auto Mode: Automatically selects from 256 filter levels based on fog density and darkness to deliver optimal image enhancement
-
High-performance FPGA solution with an exclusive Full HD-level fog removal algorithm
-
3D Noise Reduction Filter ensures maximum noise removal for the clearest images
-
Enhances blurry security camera images caused by fog, rain, yellow dust, smog, low light, etc.
-
Both real-time and stored image enhancement are available.
Result videos of HVH-200
Specifications
| Items | Specifications | Note |
|---|---|---|
| Type | Stand Alone | |
| Video Input | HDMI (DVI is available by using gender) | |
| Video Output | HDMI (DVI is available by using gender) | |
| In/Out Resolution & Frame Rate |
1280x720 p60 1360x768 p60 1366x768 p60 1920x1080 p60 (Recommended) |
|
| Operation Temperature | 0~60℃ (32~140℉) | |

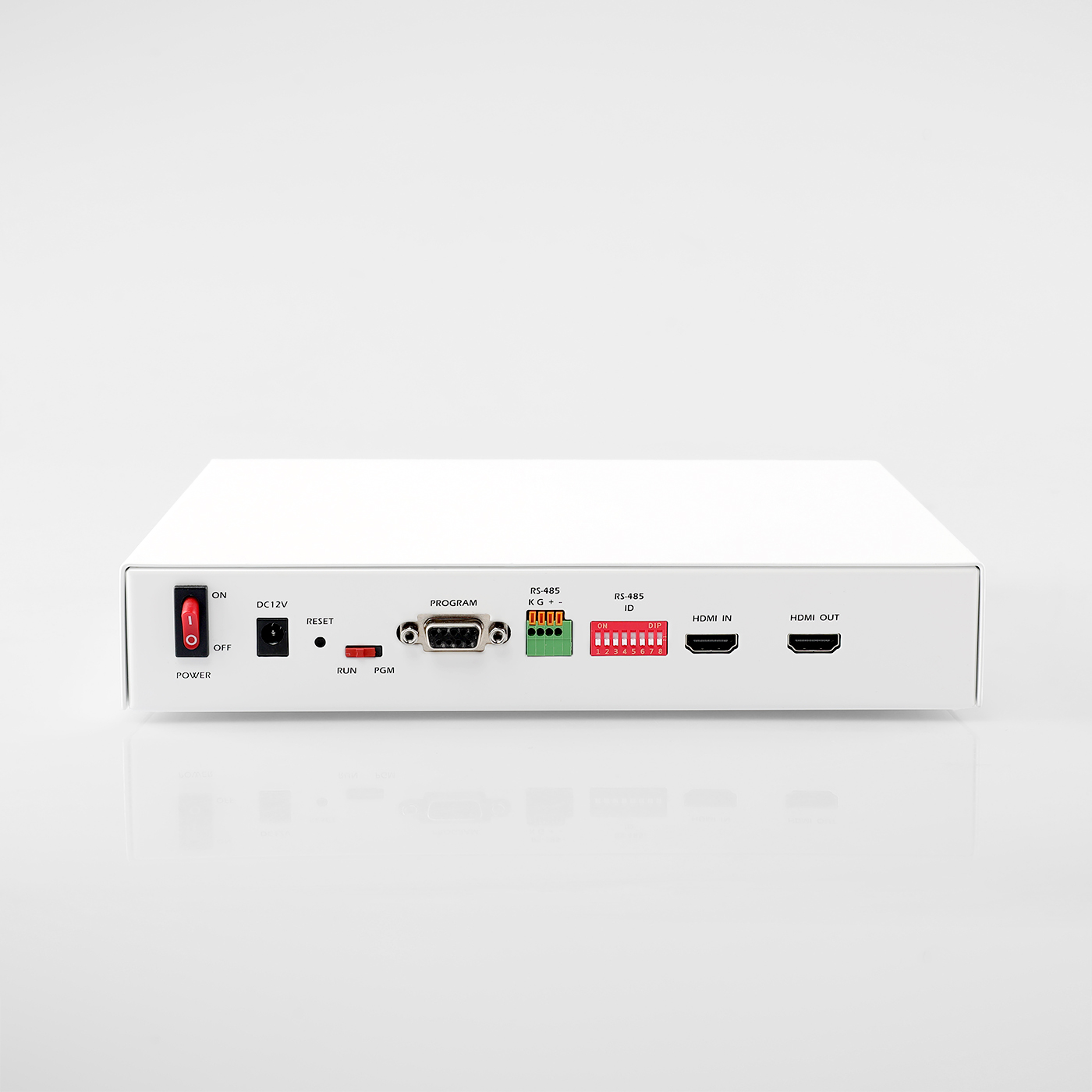

| Control Interface | Front Key & RS-485 & RS-232 | Baud Rate: 9600bps |
| ID Selectable | 0~255 | |
| Operation Humidity | 0%~80% (Non-condensing) | |
| Power Adapter | DC12V/1A (DC Adapter) | |
| Size | 245(W) x 190(D) x 44(H) mm | |
| Case Material | Steel |

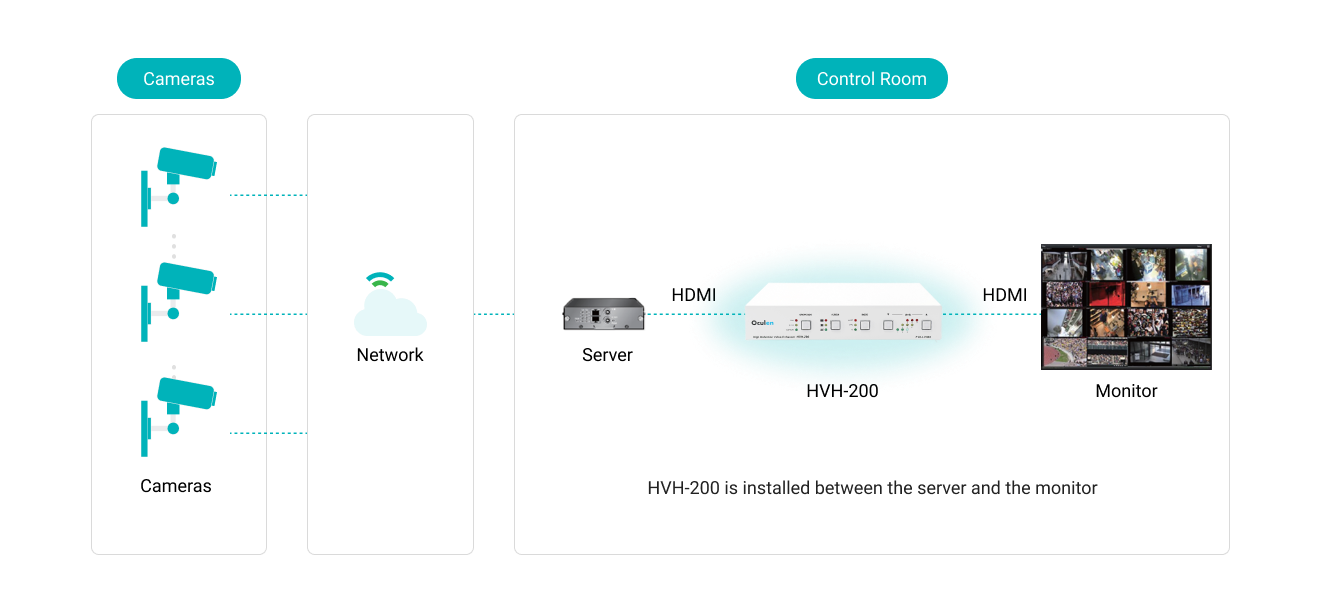

System Diagram of HVH-200
