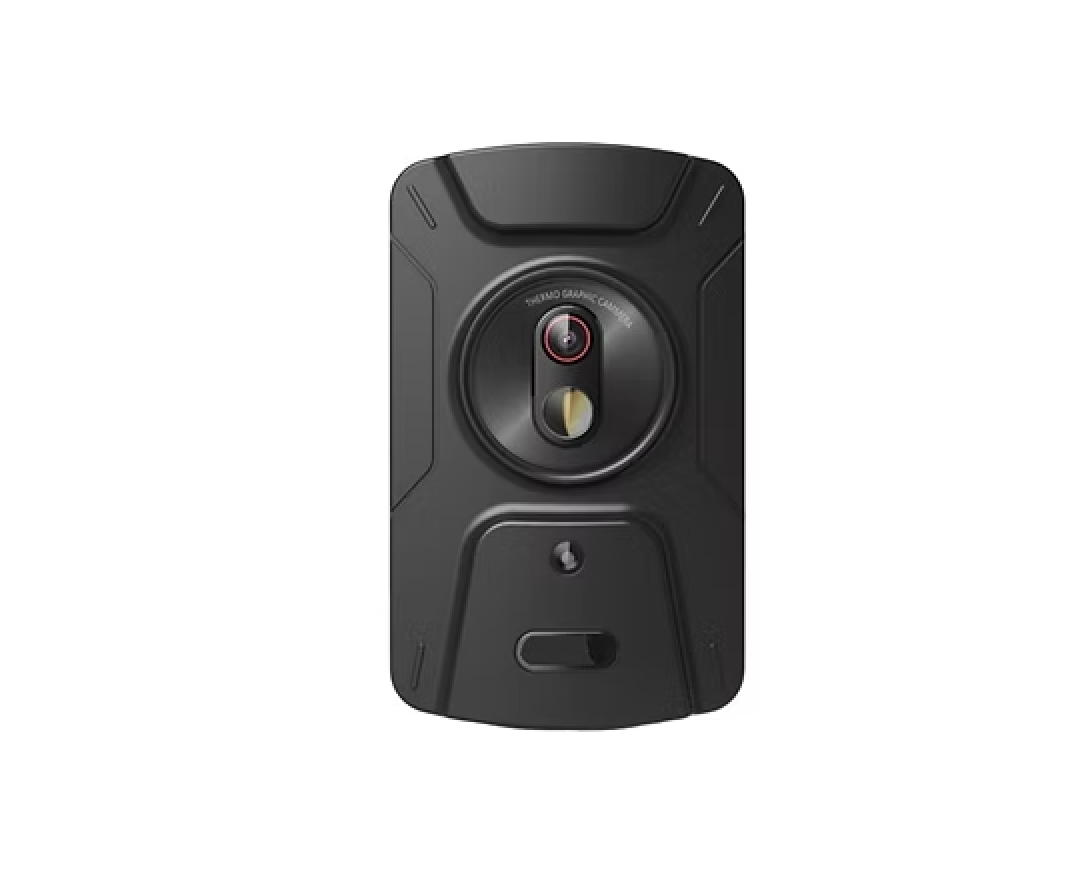

IP Thermal Camera

GIROC-160

GIROC-160

160*120 Dual IP Thermal Camera

GIROC-160 is 160*120 Dual(Visual + Thermal) IP camera for fever detection, fire prevention etc.
It detects the people with fever and helps to prevent the spread of viruses.
It can also detect the abnormal high temperature and prevent the fire.
Remote monitoring is possible. By using IP Thermal Camera technology, overheat situation of fever/fire can be detected.

Features

  • 160*120 resolution

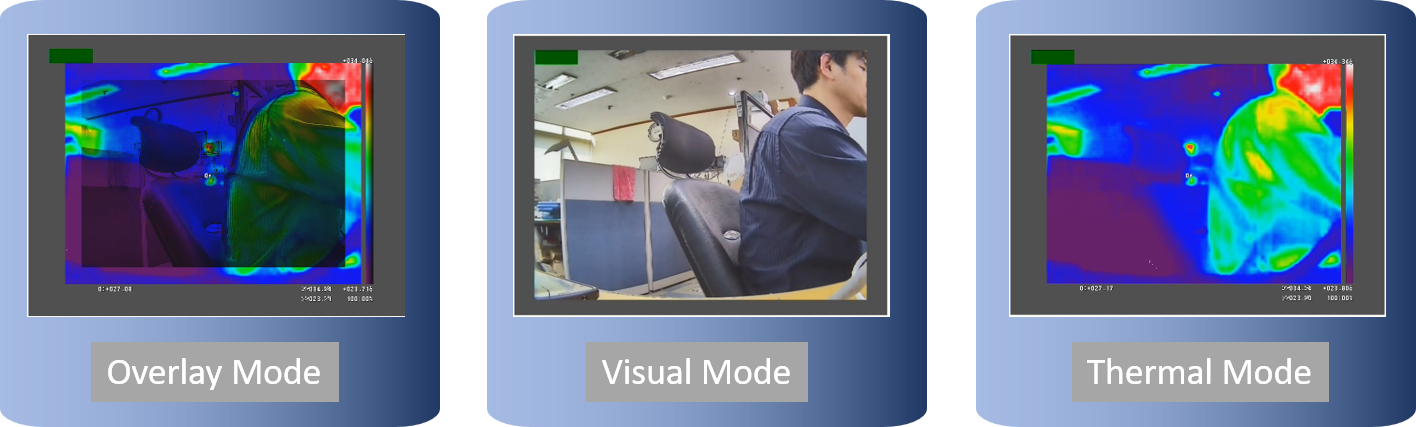

  • Supports Overlay / Visual / Thermal modes

  • Supports dual streaming (simultaneous monitoring of visual/thermal images is possible

  • Supports Camera Web Viewer page / VMS software

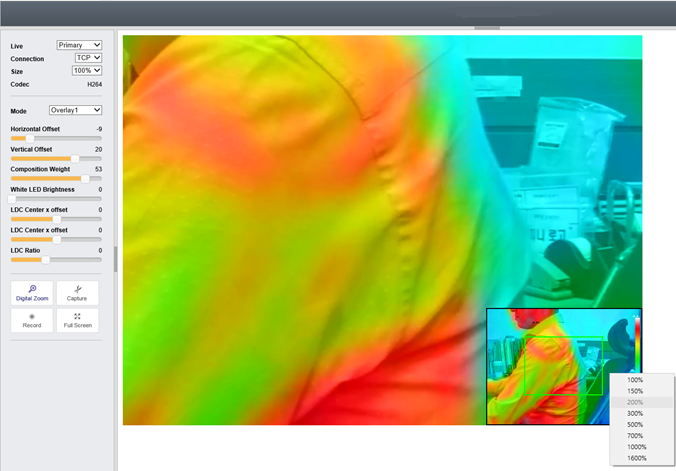

    Camera Setting on the Camera Web Viewer page

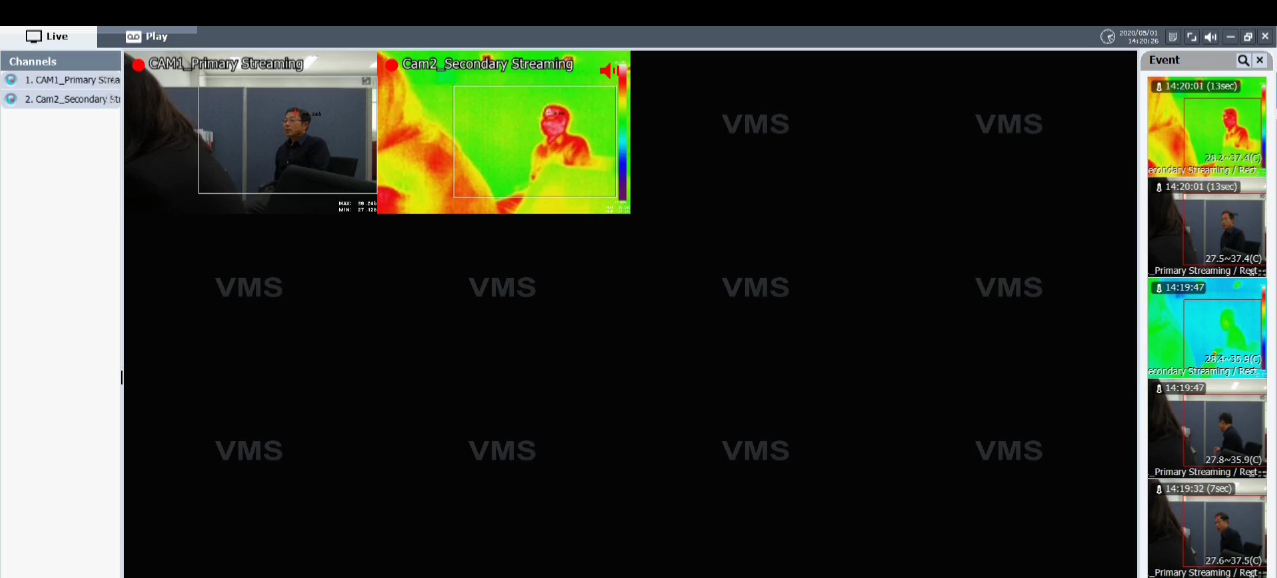

    Monitoring on the VMS software

  • Optimum affordable solution for fever / fire detection

Specifications

Feature Specifications
GIROC-160
Thermal IR Sensor Frame Rate < 9 Hz
IR Sensor Resolution 160(h) x 120(v) pixel
Field of View (FOV) 56˚ HFOV, 71˚ diagonal (f/1.1 silicon doublet)
Temperature Sensitivity (NETD) <50 mk (0.05℃) (0.09℉)
Temperature Range Low Gain Mode: -10℃ ~ 140℃ (14℉ ~284℉)
High Gain Mode: -10℃ ~ 450℃ (14℉ ~842℉)
Effective Pixels 3096(H) X 2202(V) : 6.82M pixel
Frame Rate 30 fps
Resized Resolutions Visual Mode Only: 2592X1944, 2048X1536, 1600X1200
All Modes: 1920X1080, 1280X720, 1024X768, 640X480
Others Alarm Out 1 port(Dry contact, relay out)
Operating Temperature 0℃ ~ 50℃ (32℉ ~ 122℉)
Power PoE(802.3.af), DC12V
Power Consumption 5W (LED ON)
IP Level IP 67
Dimension (wxhxd) 80x131x47(mm)

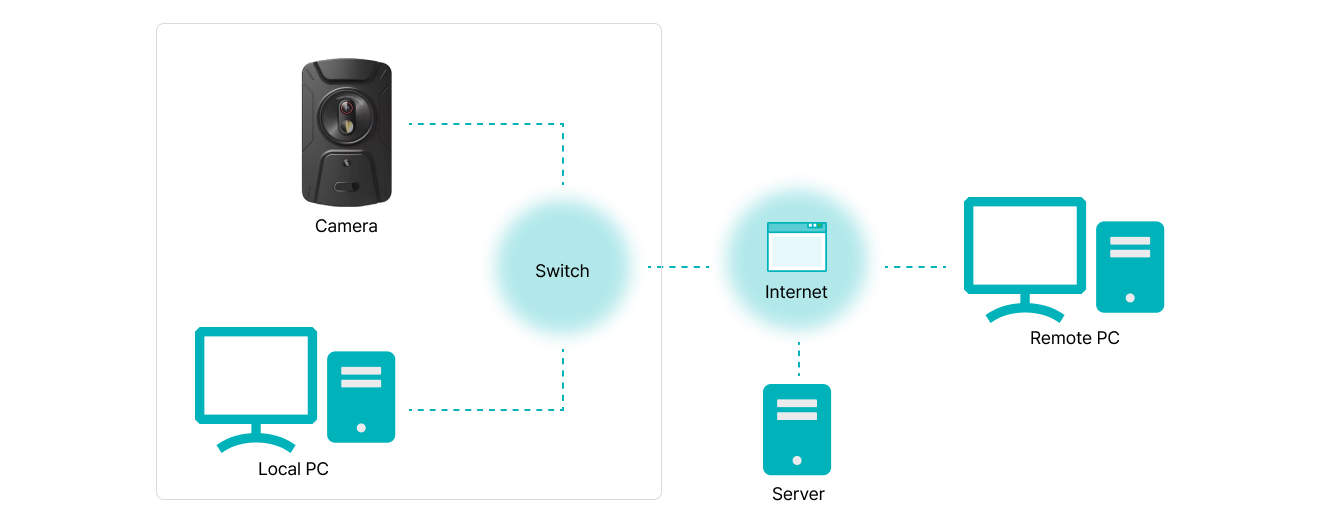

System Diagram of GIROC-160

System Diagram of GIROC-160
