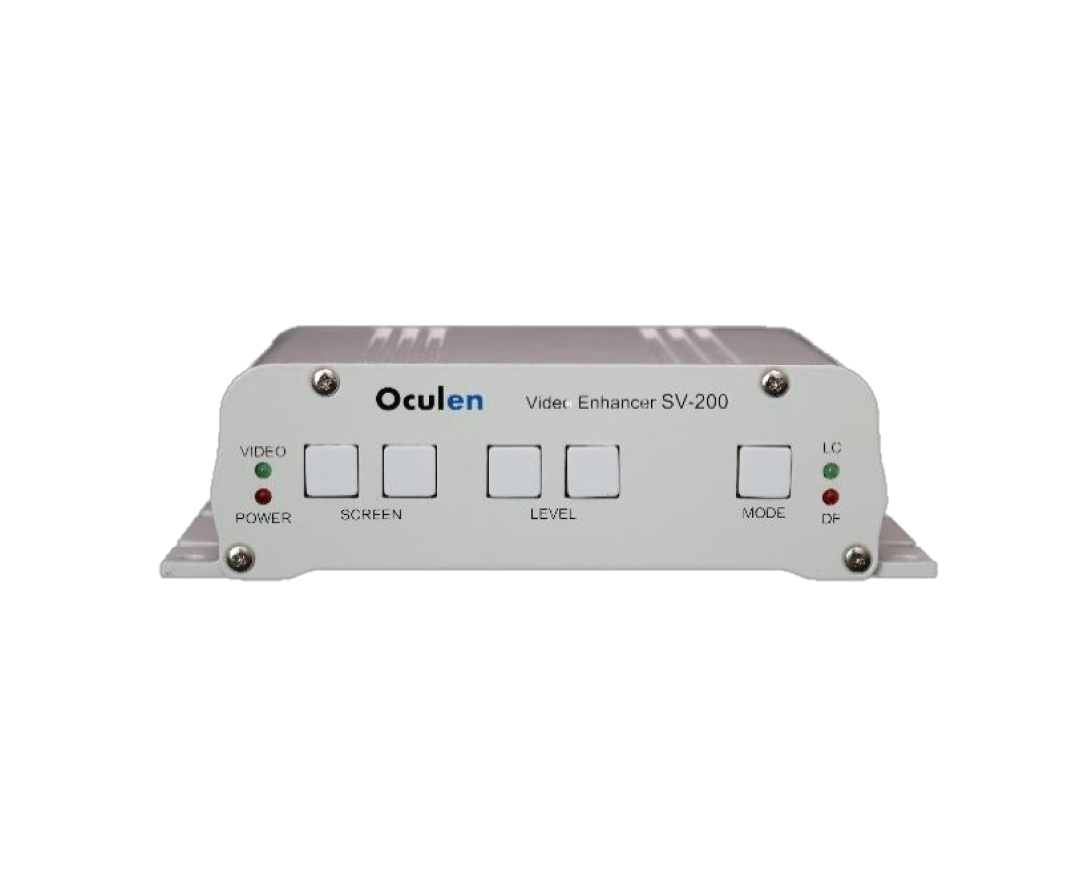

SD Video Enhancer
SV-200 Discontinued
SD Analog Video Enhancer (Thermal type ↔ Defog type convertible)
SV-200 improves the visibility of videos deteriorated by fog, low light and other adverse conditions. It can enhance not only the real-time videos, but also the stored videos. In addition to videos from regular cameras, it is particularly effective in enhancing images from Thermal Imaging IR cameras.
Features
-
Can convert Defogging product to Thermal Camera product by external control
-
Display controlling mode & enhanced area status on screen by OSD Technology externally
-
Powerful algorithm of clearing the images of fog and thermal camera
-
Equipped with superior Noise Reduction Filter technology
Reference sites
-
JAPAN : Flood prevention system, Major facilities surveillance(power plants etc.)
-
KOREA : Ocean surveillance, Navy vessels
Specifications
| Item | Spec |
|---|---|
| Video Input / Output | CVBS(NTSC, PAL) |
| Power | DC12V 1A |
| Operation Temperature | 0~60℃ |
| Operation Humidity | 5~90%(non-condensing) |
| Setting Control | Front Keys (5ea), RS-485 |
| Status Display | 5LEDs |
| ID Selection | 0~127 |
| Operation Mode | 5types |
| Enhanced Area Selection |
8 positions (Defog & Low Light) 12 positions (Thermal) |
| Enhancement Level | 16 steps |
| Size | 150(W) x 42(H) x 104(D) mm |
| Weight | 450g |
Result images of SV-200 (Thermal type)

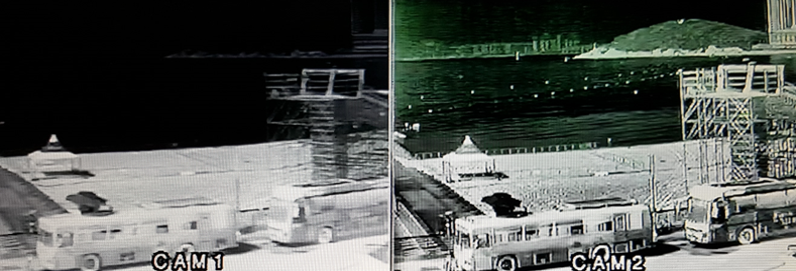

At midnight, in midsummer
An unseen island and some floating materials appear.

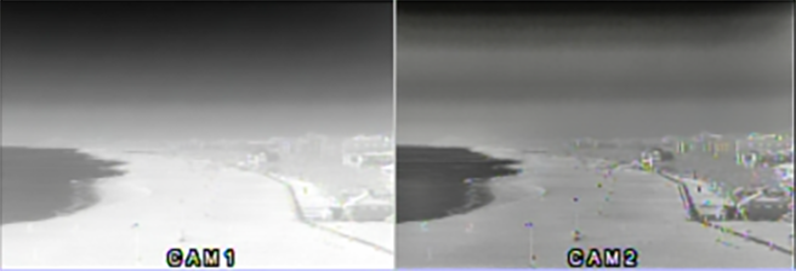

Unseen streetlamps and people walking along the beach appear.
At dawn before the sunrise, in winter

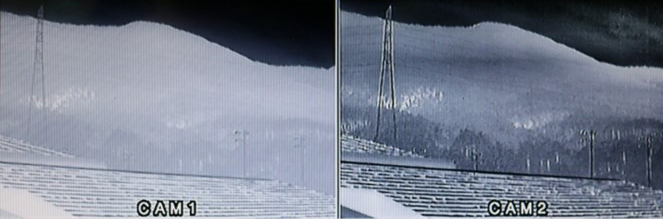

Blurry wires, trees and fields become clear.

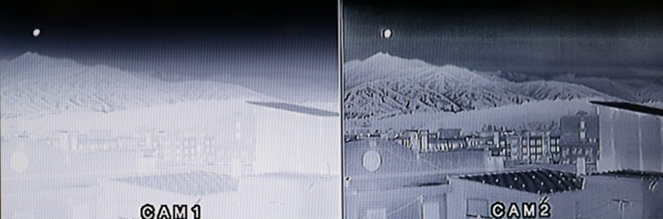

Unseen moon and racks of the buildings appear.
Result images of SV-200 (Defog type)

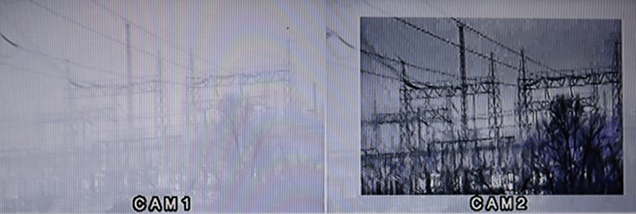

The blurry wires of electric power stations become clear.

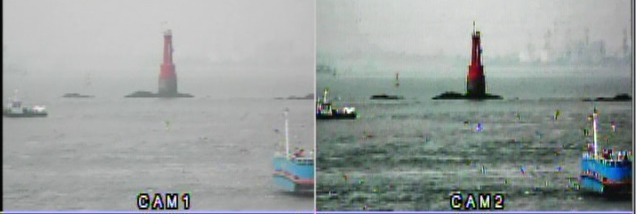

The blurry seagulls, wave become clear.
And the unseen buildings behind the lighthouse appear.
Result images of SV-200 (Low light)

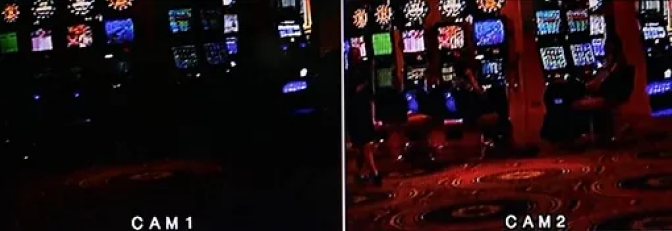

At the dark casino, unseen people and the carpet appear.

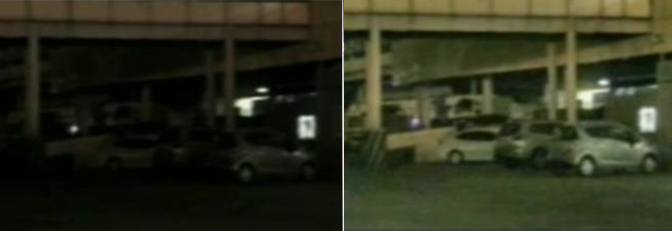

In the dark parking lot, unseen cars and structures become visible.

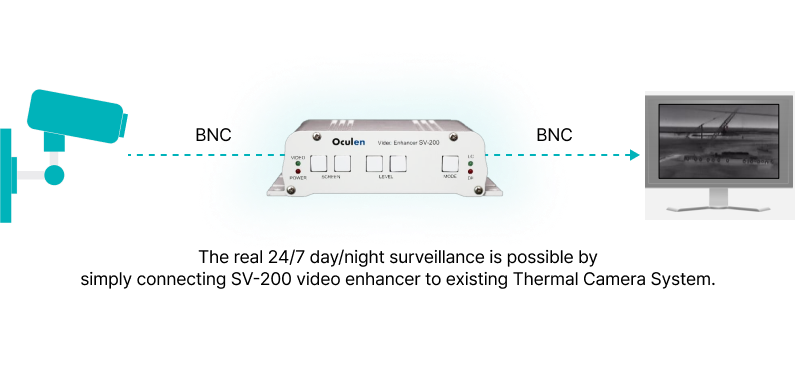

System Diagram of SV-200
