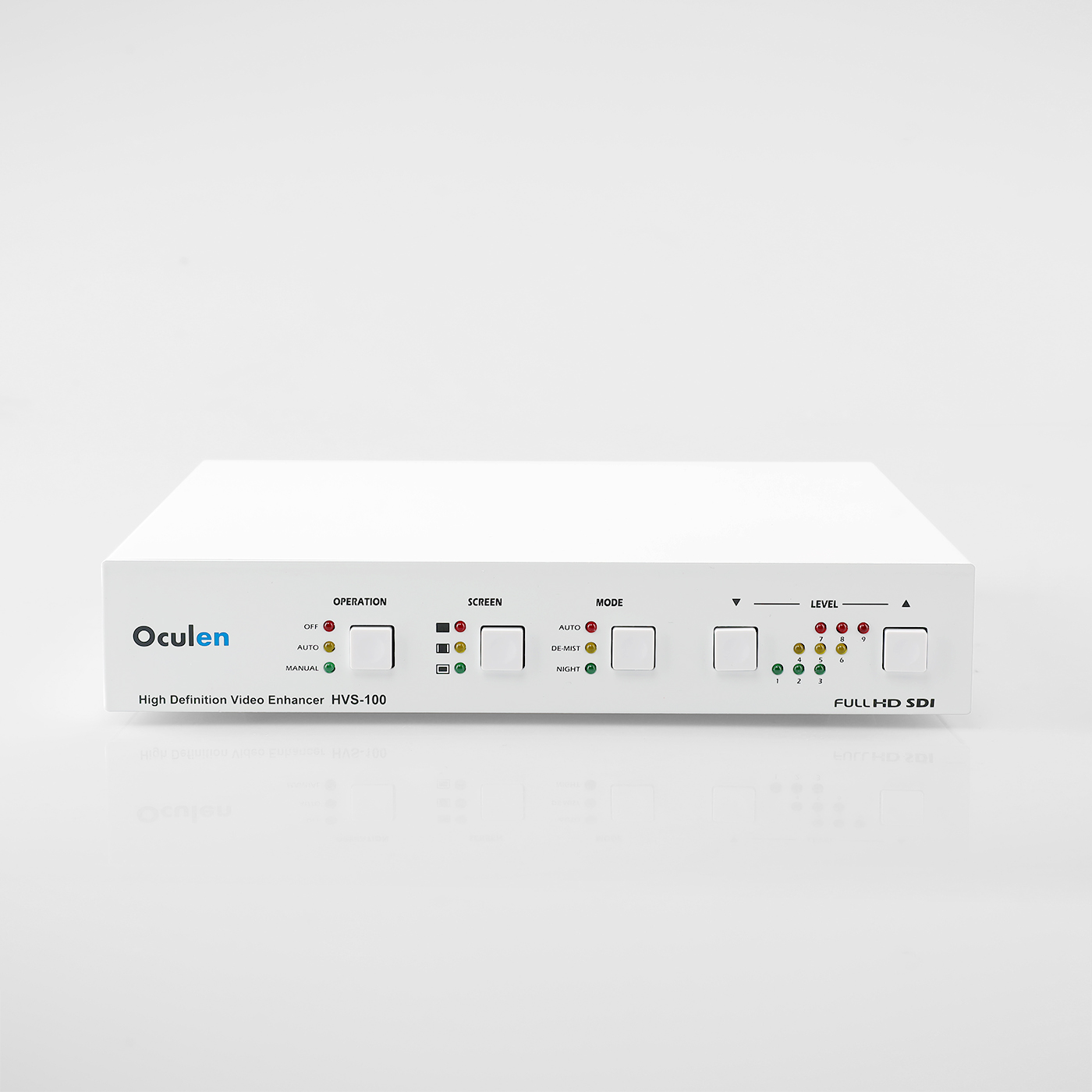

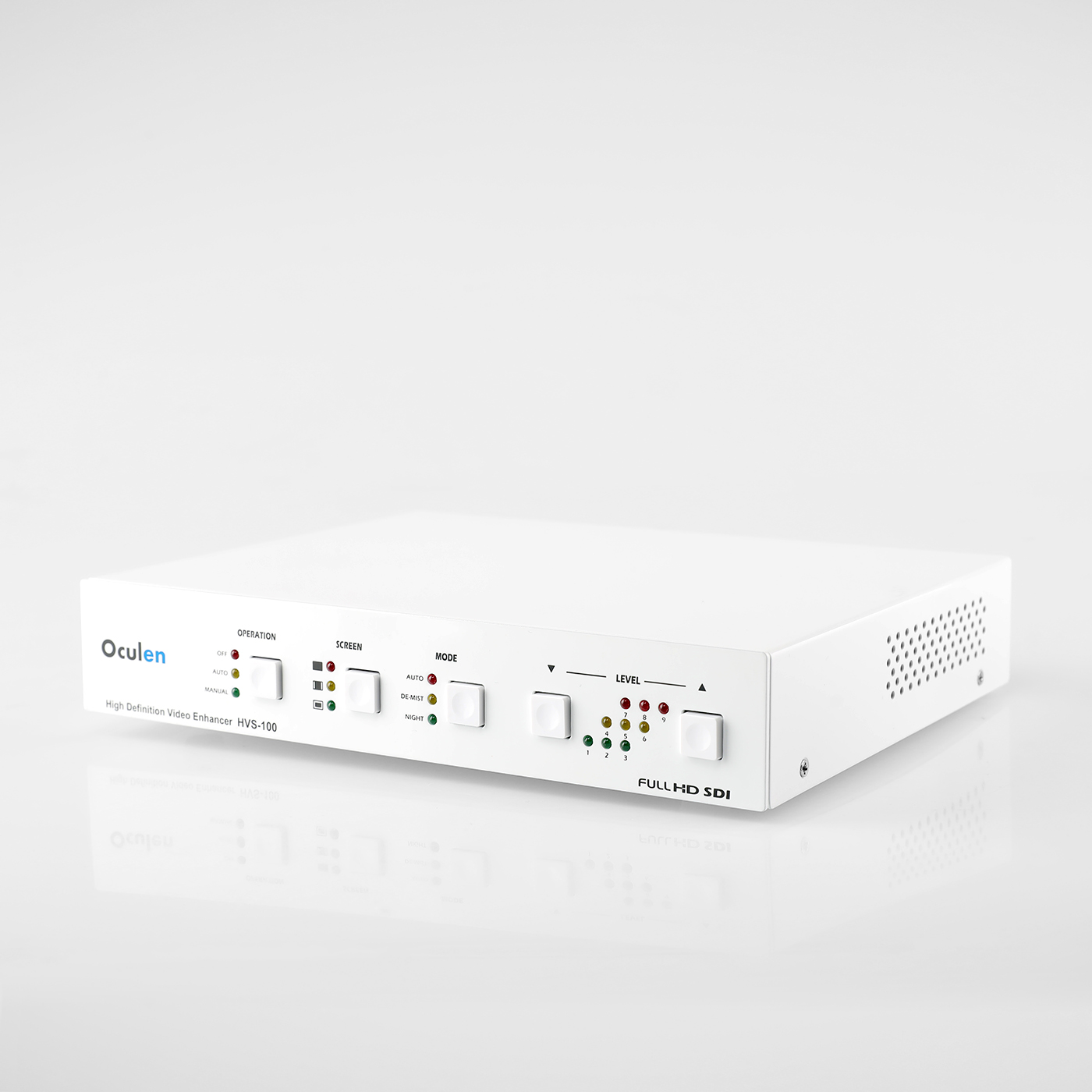

Full HD HVS-100 Video Enhancer
Full HD HVS-100 Video Enhancer
Features
-
Used for the image enhancement of HD-SDI surveillance cameras
-
Typically connected directly to HD-SDI cameras on a one-to-one basis
-
Compatible with AHD, TVI, CVI cameras through additional converters
-
Auto Mode: Automatically selects from 256 filter levels based on fog density and darkness to deliver optimal image enhancement
-
High-performance FPGA solution with an exclusive Full HD-level fog removal algorithm
-
3D Noise Reduction Filter ensures maximum noise removal for the clearest images
-
Enhances blurry security camera images caused by fog, rain, yellow dust, smog, low light, etc.
-
Both real-time and stored image enhancement are available.
Result videos of HVS-100
Specifications
| Items | Specifications | Note |
|---|---|---|
| Type | Stand Alone | |

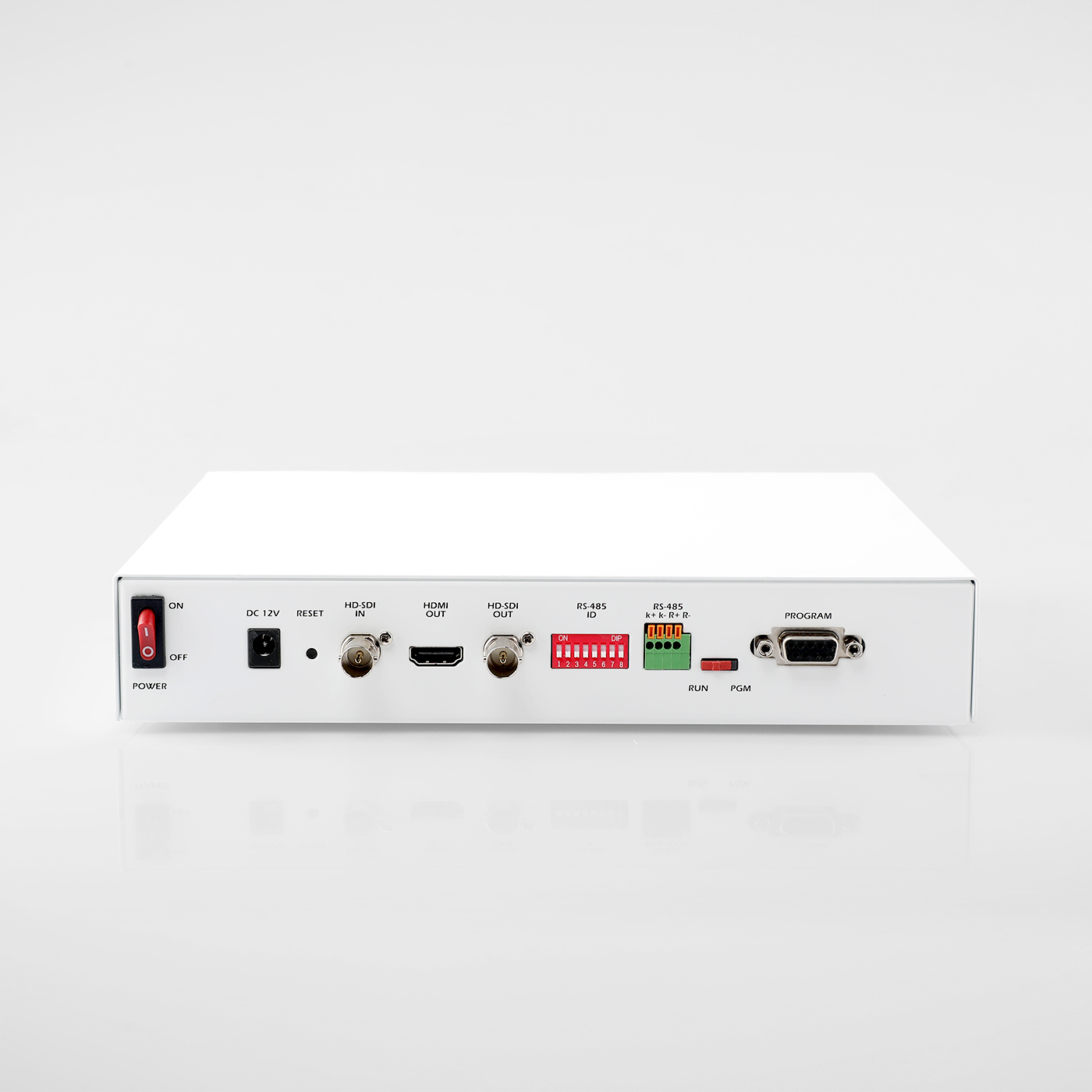

| Video Input | HD-SDI 75Ω BNC | |
| Video Output | HD-SDI 75Ω BNC & HDMI | |
| Operation Temperature | 0~60℃ (32~140℉) | |
| Control Interface | Front Key & RS-485 & RS-232 | Baud Rate: 9600bps |
| ID Selectable | 0~255 | |
| Operation Humidity | 0%~80% (Non-condensing) | |
| Power Adapter | DC12V/1.5A (DC Adapter) | |
| Size | 245(W) x 190(D) x 44(H) mm | |
| Case Material | Aluminum + Steel |

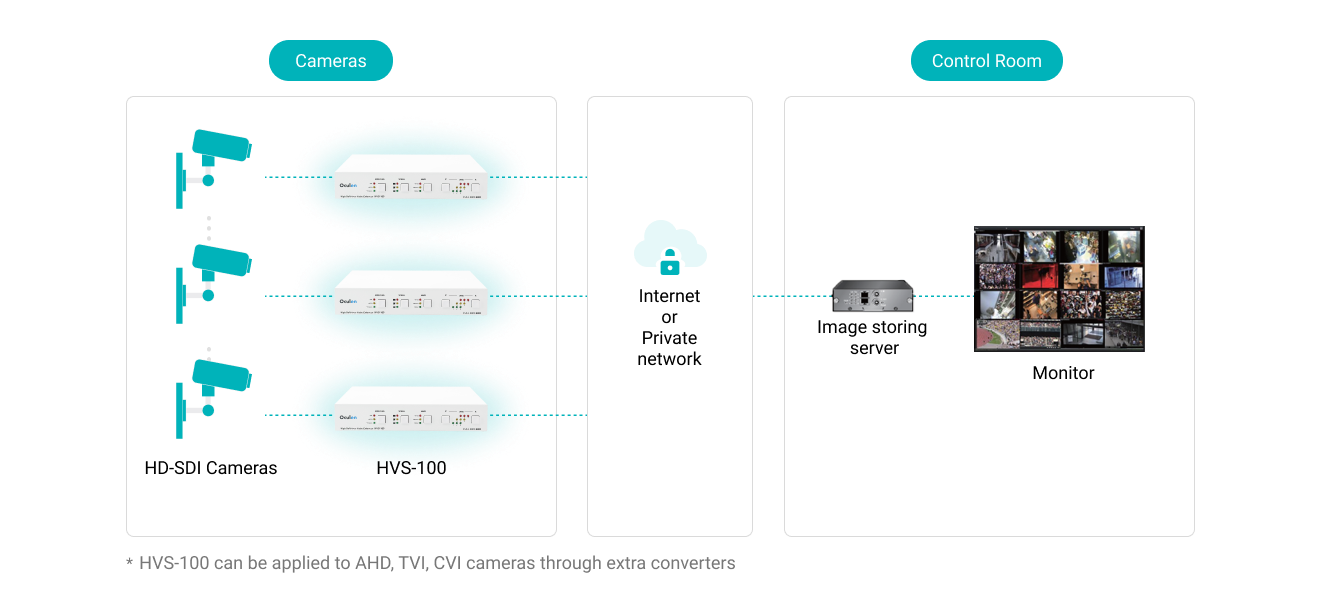

System Diagram of HVS-100
